- 5 Mile Rating – Energizes up to 5 miles of electric fencing in ideal conditions (no weeds) and up to 2.5 miles in light weeds
- Long-Lasting Charge – This solar-powered charger stores enough solar energy to operate for up to 2 weeks without sun
- Versatile Installation – This charger features a built-in mounting bracket for T-posts, Y-posts, and round-wood posts
- Patented 360-Degree Rotation – Adjustable mounting allows you to rotate the charger on T-posts to face the sun’s changing directions
- Built in the USA - Full-load tested in the U.S. after manufacturing - 1-Year Limited Warranty including lightning damage
Product Description

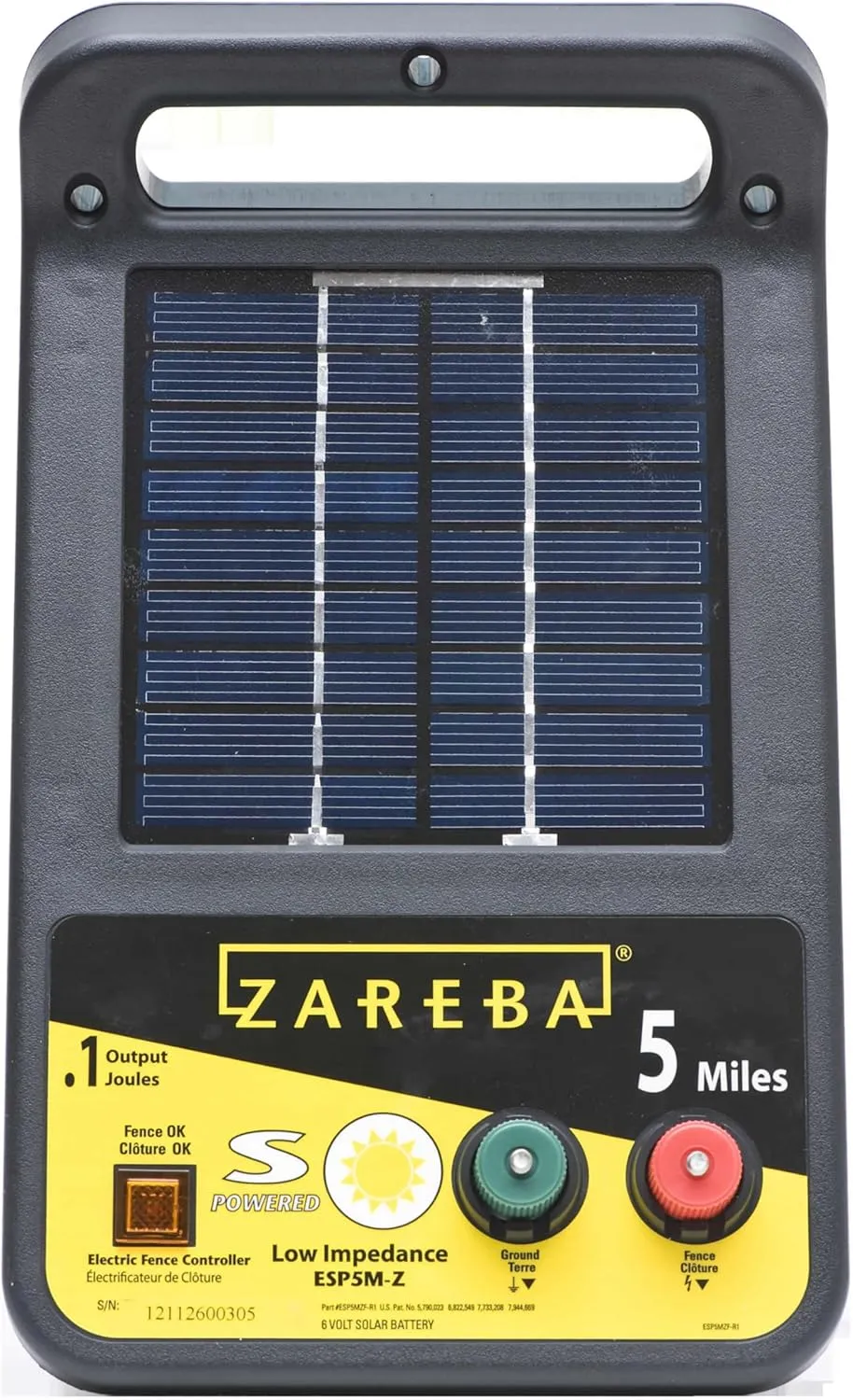

With the Zareba 5 Mile Solar Low Impedance Fence Charger your fence can have power from anywhere. This fence charger runs up to 2 weeks without sunlight and is powered by an internal rechargeable battery. With 0.15 output joules, this energizer will support animals and livestock such as cattle, horses, pigs, and goats. This charger energizes up to 5 miles of fencing, although if using poly products, you should expect about half of the power. The more material along the fence line, the harder the energizer must work to pass voltage through the line. To prepare the 5 Mile Solar Charger for first use, place the unit in full sun for 3 days in the off position. After this charging period, the unit is ready to use and install. Set the charger's integrated mounting bracket onto a T-post, Y-post, or round-wood post. On T-posts specifically the charger can rotate 360 degrees to face the suns changing directions. The durable case will protect the energizer against the elements. Built in the USA, it is tested with a full load at our manufacturing facility and comes with a 1-Year Limited Warranty including damage from lightning..
Amazon.com
Controlling livestock in a location without access to AC power is easy with the Zareba 5 Mile Solar Fence Charger.
The Zareba 5 Mile Solar Fence Charger powers up to 5 miles of fence and can be used with the following fence types: steel/aluminum, poly wire/poly rope and poly tape. Made in the USA, the solar panel features compartmental damage-resistant construction.
Low impedance technology allows for less battery drain and intuitive technology resists shorts when the fence is in contact with weeds.
Animal Controlled:
At A Glance:
- Patented 360° rotation allows charger to rotate on T-Post to face the sun
- Powers up to 5 miles of fence using a sun charged battery
- Input Voltage: 6 VDC
- Output Voltage: 8.6 KV /- 20% open circuit voltage
- Can be used with steel, aluminum, poly wire, poly rope, and poly tape.
- Low-impedance technology allows for less battery drain
- Resists shorts when the fence is in contact with weeds
- Includes a 1-year limited warranty including damage caused by lightning
- Made in the USA
Fence Charger Expert Tips:
The fence charger is the heart of your electric fence system. Consider the following factors to ensure you buy the right fence charger to meet your needs:
- Power source for your fence charger
- Type of fence line
- Area of fence and number of wire strands
- Weed conditions
- Type of animal controlled
Zareba 2 Mile Solar Charger
Model: ESP2M-Z
- Powers up to 2 miles of fence
- Input Voltage: 4 VDC
- Output Voltage: 8 KV
- 1-year limited warranty
Zareba 3 Mile Solar Charger
Model: SP3
- Powers up to 3 miles of fence
- Input Voltage: 6 VDC
- Output Voltage: 7.2 KV
- 1-year limited warranty
Zareba 5 Mile Solar Charger
Model: ESP5M-Z
- Rotates 360° on T-Post
- Powers up to 5 miles of fence
- Input Voltage: 6 VDC
- Output Voltage: 8.6 KV
- 1-year limited warranty
Zareba 10 Mile Solar Charger
Model: ESP10M-Z
- Powers up to 10 miles of fence
- Input Voltage: 6 VDC
- Output Voltage: 7.5 KV
- 1-year limited warranty
Zareba 30 Mile Solar Charger
Model: ESP30M-Z
- Powers up to 30 miles of fence
- Input Voltage: 12 VDC
- Output Voltage: 7.8 KV
- 2-year limited warranty
4000 - 5000 volts 6' tall to keep out deer, high visibility, minimum 7 strands Horses
2000 - 3000 volts White 2" poly tape or high tensile wire recommended, 3-5 strands Sheep/Goats
4000 - 5000 volts Difficult to confine, 4-6 strands Pigs
2000 volts To deter from rooting, use 3-4 wires starting 6" from ground Predators
4000 - 5000 volts Wires spaced 6-8" apart, high output shock value Nuisance pests
1000 - 2000 volts Smaller animals require closer wire spacing Bulls/Bison
3000 - 4000 volts Extra shock needed to control a determined bull, 4 strands minimum Pets
700 - 1000 volts 3-4 wires, starting 6" from ground Cows
2000 - 3000 volts If docile with plenty of pasture, 1-3 strands Poultry
500 - 900 volts Anti-Roost device on commercial poultry feeding systems *Zareba Systems voltage testers can help you determine if you have adequate voltage on your fence line.
Testing Your Fence
To ensure your fence is operating properly, and your animals are contained safely, it is important to test your fence regularly. Using a Zareba Systems Electric Fence Tester you can measure fence line and fence charger voltage.
Lightning And Power Surge Protection
Lightning is often the cause of fence charger failure. To prolong the life of your charger consider the following:
- Disconnect the charger from the power source when storms are near
- Install a lightning diverter/arrestor to divert lightning to the earth
- Use a lightning choke to dissipate power surges caused by lightning
