Descriptions:

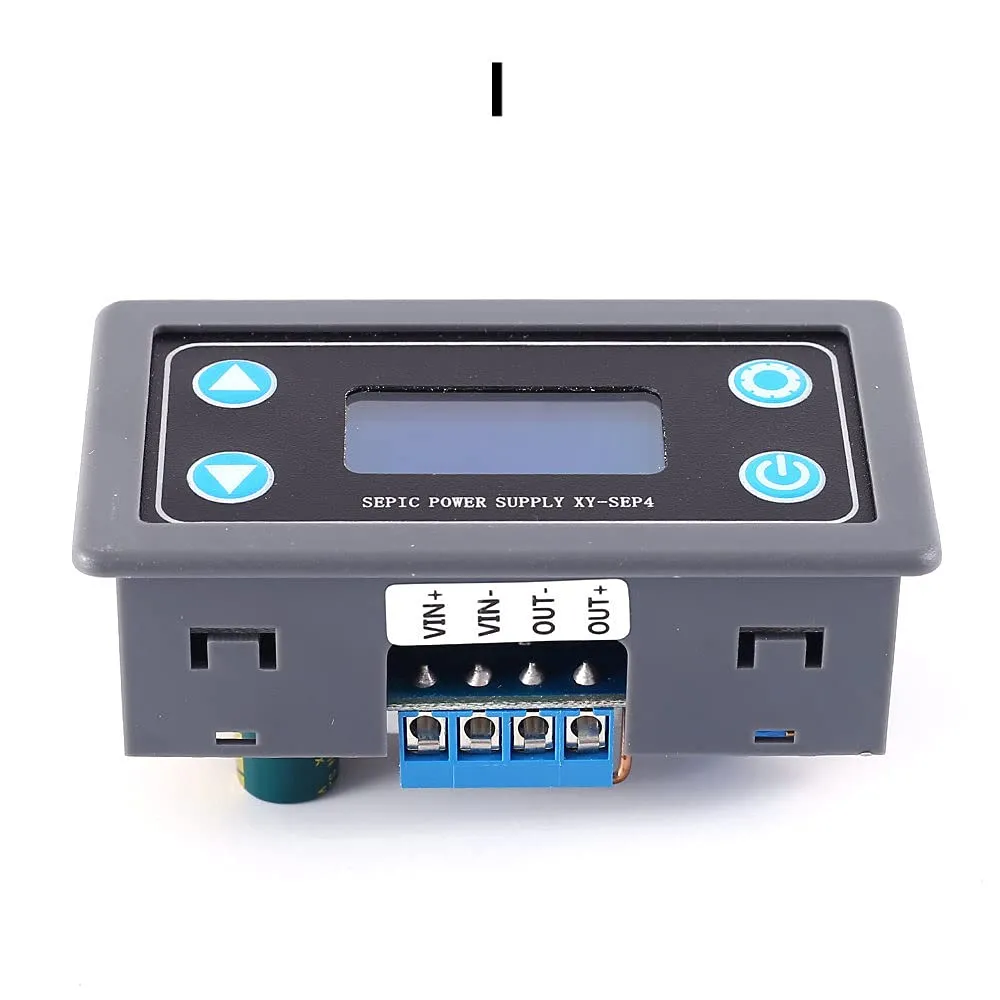

XY-SEP4 is a DC adjustable constant voltage constant current automatic buck-boost power supply module with LCD display.HD display input voltage and output voltage, current, power, display status, capacity, energy and time.Adjustable stable output voltage and current.Set output current to meet the demand.It can be used as ordinary buck power supply module, charger and LED constant current driver.Simple and efficient, practical.
It supports solar charging and can be connected to solar cells.
2.
Features:
1>.High quality heat sink
2>.Simple operation
3>.Support power saving mode
4>.Multi-parameter display
5>.Support anti-reverse protection
6>.Support anti-backflow protection
7>.Support output short circuit protection
8>.Support over-voltage protection
9>.Support over-current protection
10>.Support over power protection
11>.Support over temperature protection
12>.Support solar charging function
13>.Support constant voltage constant current output
14>.Support Automatic buck/boost voltage.
15>.Support enabled/disabled output.
16>.LCD screen HD display
17>.Support display input voltage
18>.Support display output voltage, current, power
19>.Support working status indicator
20>.Multiple parameters are displayed simultaneous
3.Parameters:
1>.Product Name:XY-SEP4 Step Down/Up Power Supply Module
2>.Product Number:XY-SEP4
3>.Working Voltage:DC 5V-30V
4>.Output Voltage:DC 0.5V-30V
5>.Output Power:35W
6>.Voltage Display Precision:1%
7>.Voltage Display Resolution:0.01V
8>.Current Display Precision:1.5%
9>.Voltage Display Resolution:0.001A
10>.Conversion efficiency:About 88%
11>.Anti-reverse Protection:Yes
12>.Anti-backflow Protection:Yes
13>.Short Circuit Protection:Yes
14>.Work frequency:180KHz
15>.Over-temperature Protection:100℃
16>.Working Temperature range:-20℃~100℃
17>.Working Humidity ra

• Date First Available ‏ : ‎ September 15, 2021
• Manufacturer ‏ : ‎ DIYElectronic
