- Universal Anderson Connectors - 10Pcs 50 Amp battery connector plugs (Interconnecting halves),20Pcs copper terminals silver plated,10Pcs Boot Caps. Provides simple and convenient method for connect/disconnect power to a winch or other electrical device such as remote battery chargers, power inverters, solar setups,trailers, or for any purpose requiring a high-current, quick-disconnect connector

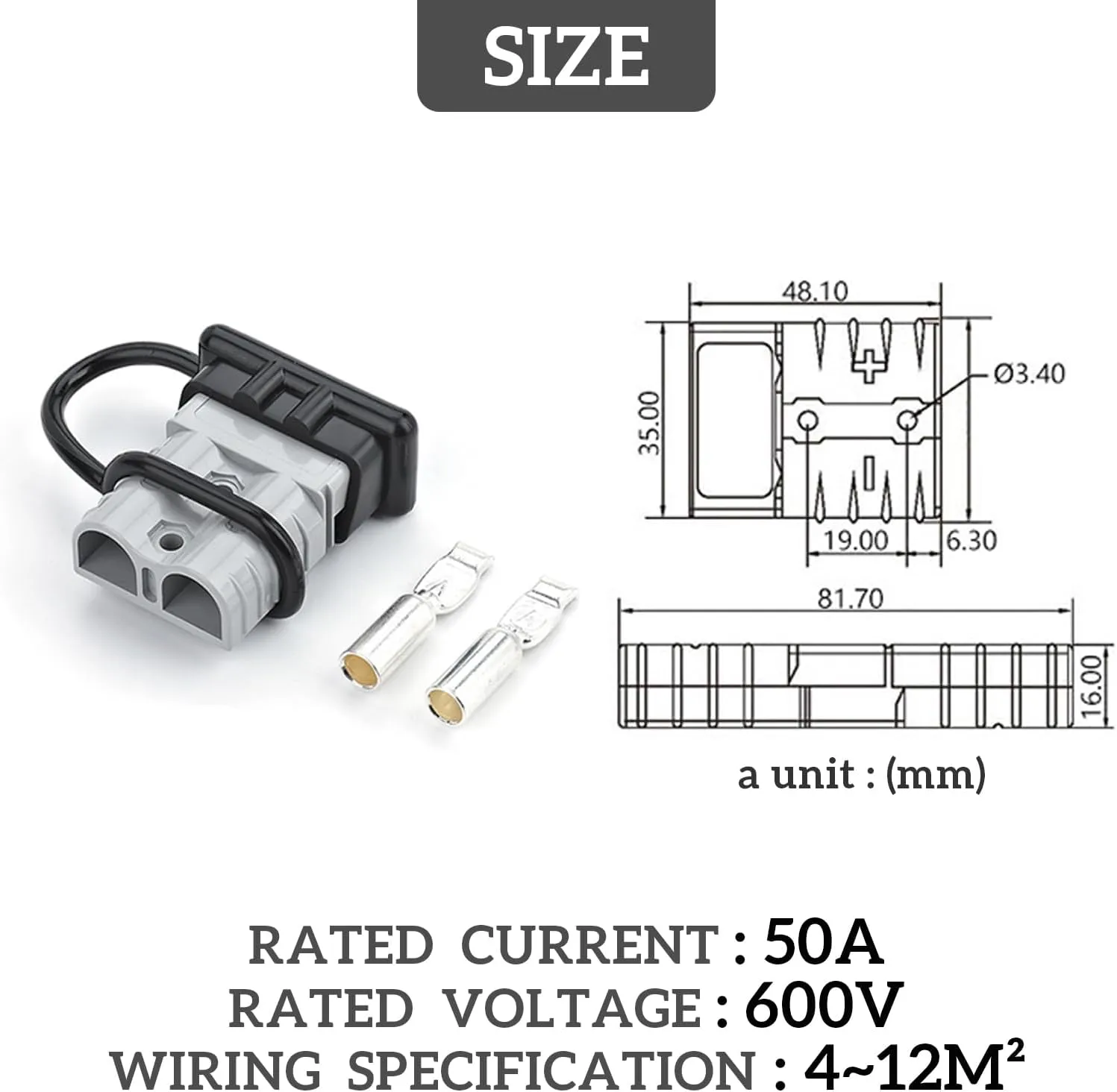

- Winch Quick Connect Wiring Dimension - 1.38" x1.89"x0.63"/power pole connectors. Ratings: 50 amps, 600 Volts Max.Complete with terminals suitable for cables up from 4mm² (12AWG) to 12mm² (7 AWG) (depending on your terminal choice of size)
- Silver Plated Contacts - Offers greater longevity when using high power, elevated temperature applications.Terminals can either be crimped or soldered to the cables.Standard Temp: -20°C to 105°C (-4℉~221℉)
- Mechanically Keyed Housings - Prevents accidental component mating (each connector slots into the other - there is no male and female version) Inserting into the same color is a pair, easy and quick to splice and interrupt(Different colors are not compatible)
- Safe Contact - Both ends are suitable for connection to the power or load side because of its identical connectors.The ends are made to connect only one way, making it impossible to connect the wrong polarities to one another,preventing accidental reverse polarity when hooking up a charger
Eagles 50A 7-12 AWG Battery Quick Connect Disconnect Wire Harness Plug Kit 10 Pcs Battery Cable Quick Connect Disconnect Plug for Winch Auto Car Trailer Driver Electrical Devices,Grey
Winch power cable quick disconnect allows quick connect and disconnect for cars, trucks, winches, tow and dump trailers, audio equipment, solar panel systems, auxiliary batteries, and other electrical devices
Specification:
Color: Grey
AMP Rating: AC/DC 50
Rated voltage: UL rated at 600 volts DC or AC
Terminal material: Cu/Ep&Ag
Plastic shell material: PC fire-retardant materials
Contacts material: copper silver
Fire rating: UL94 V-0
Internal shrapnel: 65Mn
Environment Termperature: -4℉~221℉/-20℃ ~ 105℃
Power connector specification(AWG USA): 7,8,10,12 AWG
Connector specification (mm²): 4-12
How to use: Insert the wires into the terminal pins, then solder or crimp them Insert the terminal pins into the connector housing and lock them in place
Suitable For: UPS battery power connector
Connect/disconnect Cycles: 10,000 times

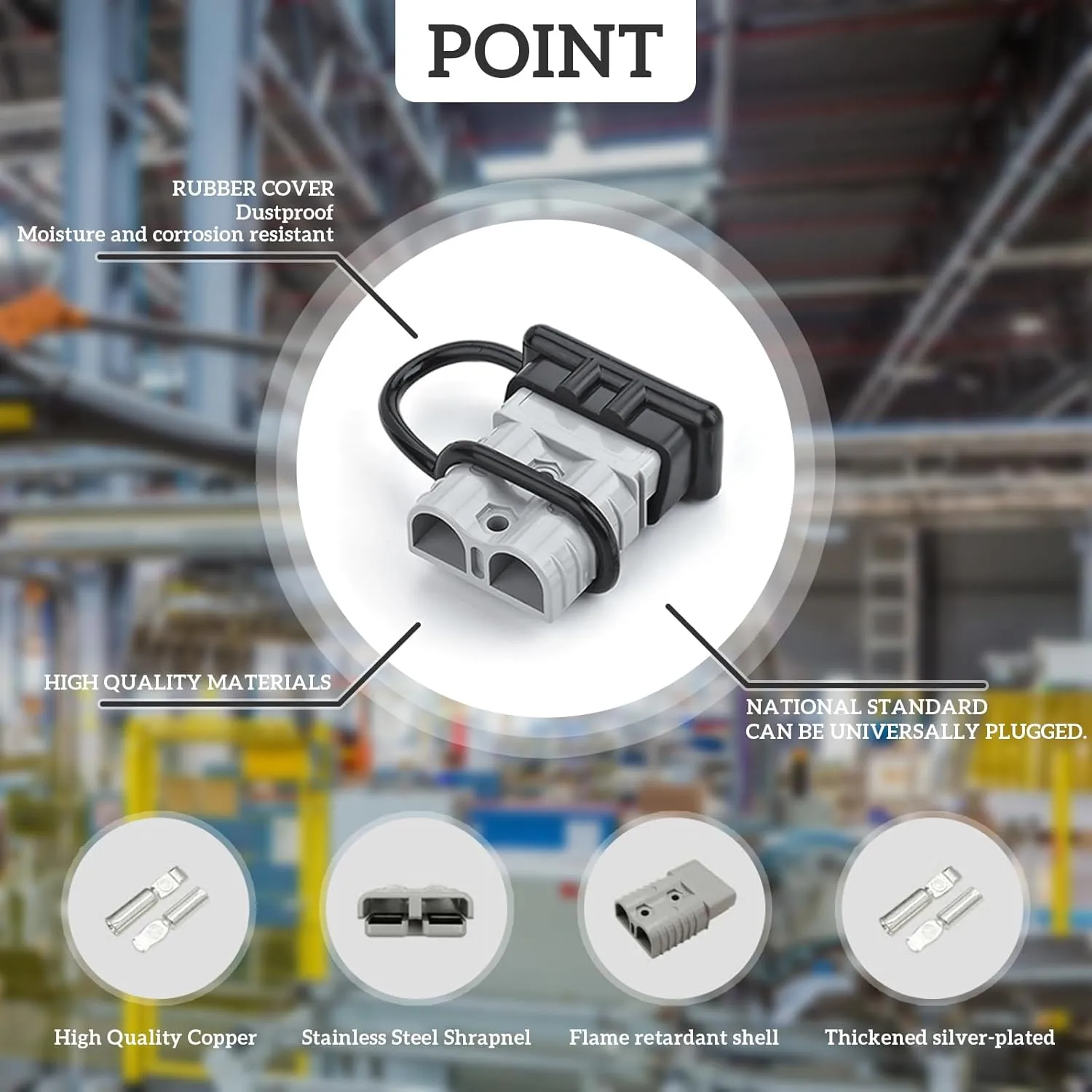

Product Highlight:
Molded Side Grooves
Allows for a secure panel mounting fit
Mechanical Keyed Housings
Prevents accidental mating of components operating at different voltage levels
Single-piece housing and unitized construction
Provides industrial quality and durability battery cable connector
They're made from copper coated with silver, which offers high conductivity and produces less heat
Accurately polarity markings on the housing help in proper wiring.

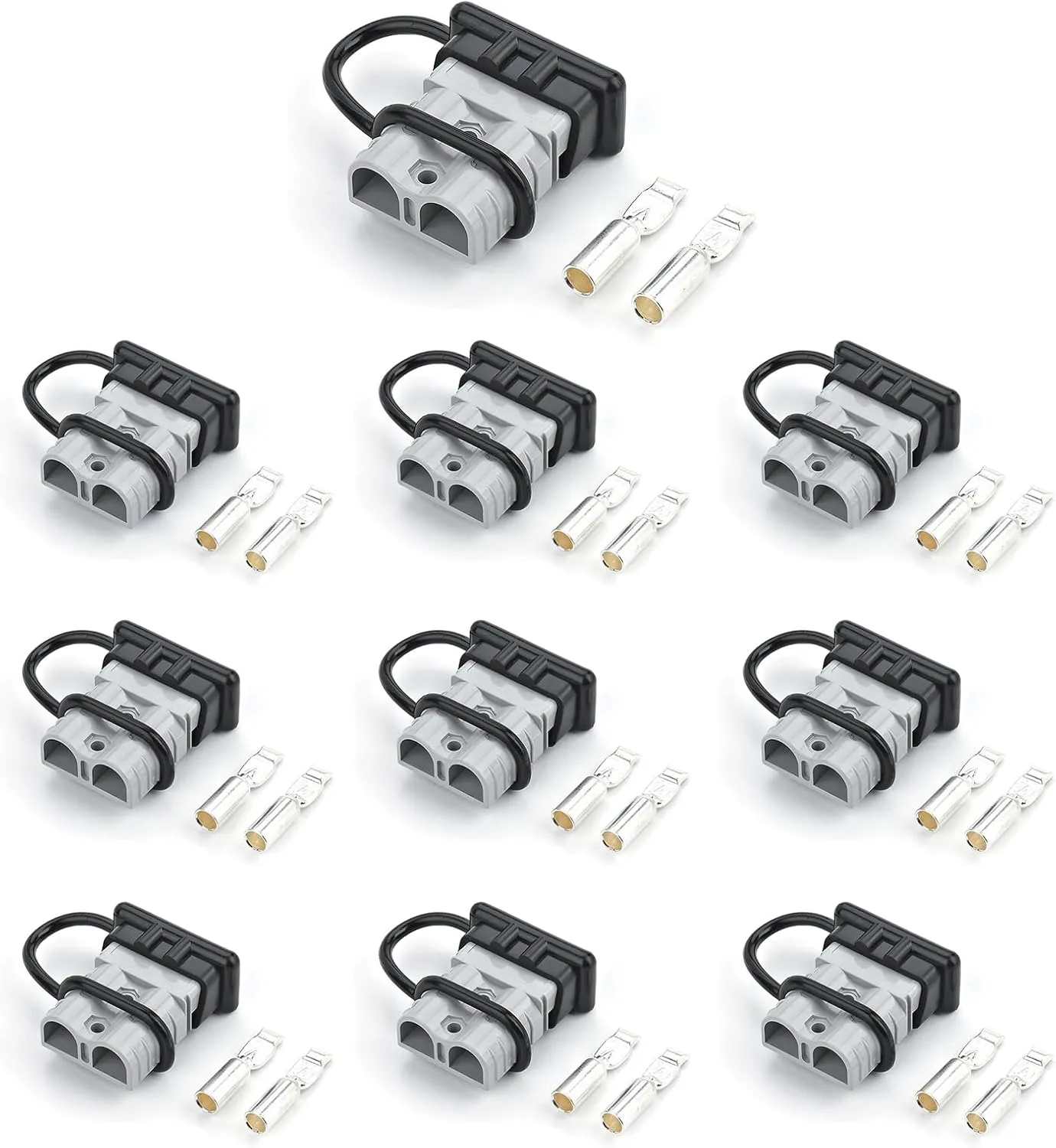

Package Includes:
10 x Grey Anderson Connectors
20×Terminals
10 x Boot Caps
☎ Eagles - Your Professional Tool House
Provide CE certificate
