Studer's Compact Series of Sine Wave Inverters/Chargers integrates three functions: sine wave inverter, battery charger, and transfer system. With power levels from 1.1kVA to 4kVA, these Swiss-made devices provide optimal energy for off-grid, battery charging, or solar charge control. This is a special order. Please allow four weeks for shipping.
Description
Studer's Compact Series of Sine Wave Inverters/Chargers integrates three functions: sine wave inverter, battery charger, and transfer system. With power levels from 1.1kVA to 4kVA, these Swiss-made devices provide optimal energy for off-grid, battery charging, or solar charge control. They offer a cost-effective, all-in-one solution with a robust design and optional built-in solar charge controller. This is a special order. Please allow four weeks for shipping.
Compact Series Sine Wave Inverter/Charger Explained
The Compact Series of Sine Wave Inverter/Charger by Studer consists of 3 fully automatic functions: a Sine Wave Inverter, a Battery Charger, and a transfer system. Equipped with high-end technology, they perform optimally, thanks to Studer Innotec’s extensive experience in the field of electrical supply.

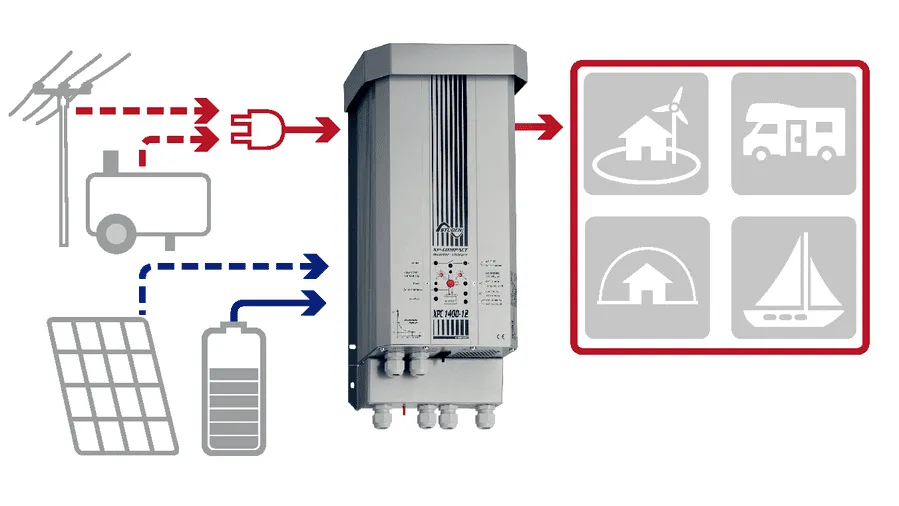

The Compact series includes devices with a power level ranging from 1.1kVA to 4kVA that allow for optimal use of available energy, either as an off-grid inverter, battery charger or solar charge controller. This range of robust products ready to be used offers an excellent price/efficiency relationship for 12, 24, or 48V battery banks.
All in one:

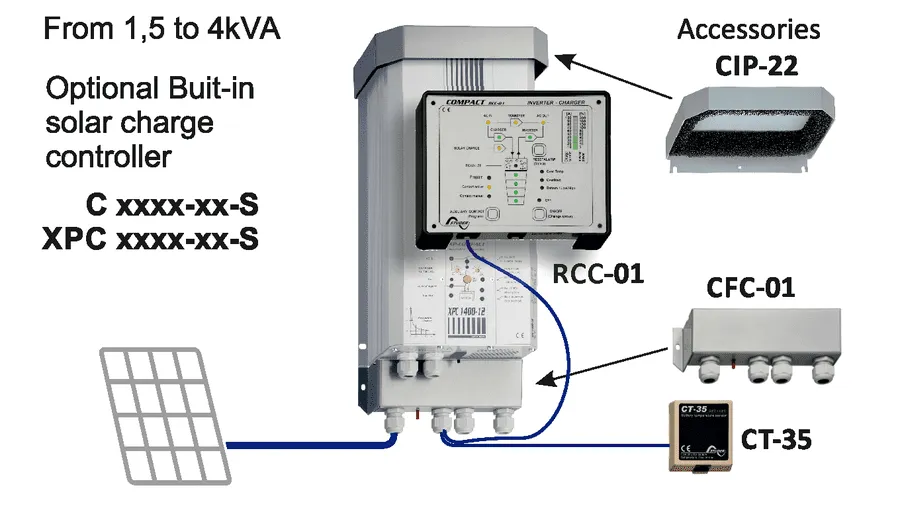

Every product of Compact series combine three functions: performing standalone inverter, powerful battery charger and ultra-fast transfer system. All in a robust casing. Equipped with a programmable auxiliary contact, it allows the start of a generator or second-priority load shedding. Also, these inverter-chargers can be supplied in option with a built-in PWM solar charge controller, making them an “all-in-one” solar hybrid system or a simple self-consumption/backup system.
Ready to use:
In addition to compact construction, these devices are shipped with assembled battery cables, reducing the system installation and commissioning costs.
The primary parameter adjustments can be done directly on the device's screen, allowing to see the different modes of the inverter.
Features
Excellent relationship between price and features
The Compact is a high-value Swiss product that combines the essential functions of a robust and compact construction, meets all requirements, and has an excellent price-feature relationship.
- True sine wave voltage
- Suitable for any electrical appliance
- Reliable and silent, working with all kinds of loads
- Outstanding overload capabilities.
- Stand-by level is adjustable over a large range and from a very low threshold.
- 4 STEP battery charger with PFC (Power Factor Correction).
- Ultra-fast transfer relay.
- High efficiency.
- Full internal protection.
- Ultra-fast regulation.
- Microprocessor controlled.
Specification
Compact Series Sine Wave Inverter/Charger by Studer E Certification Standard

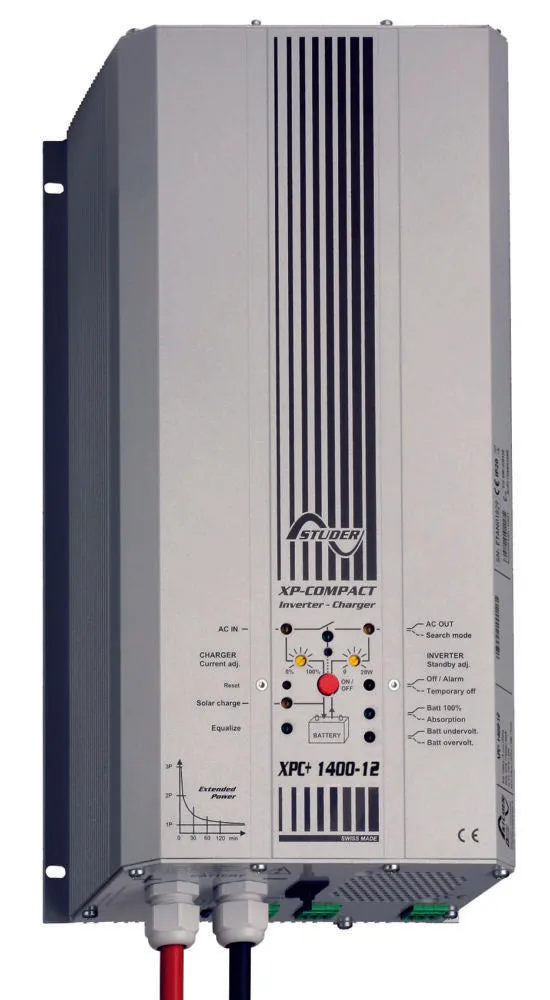

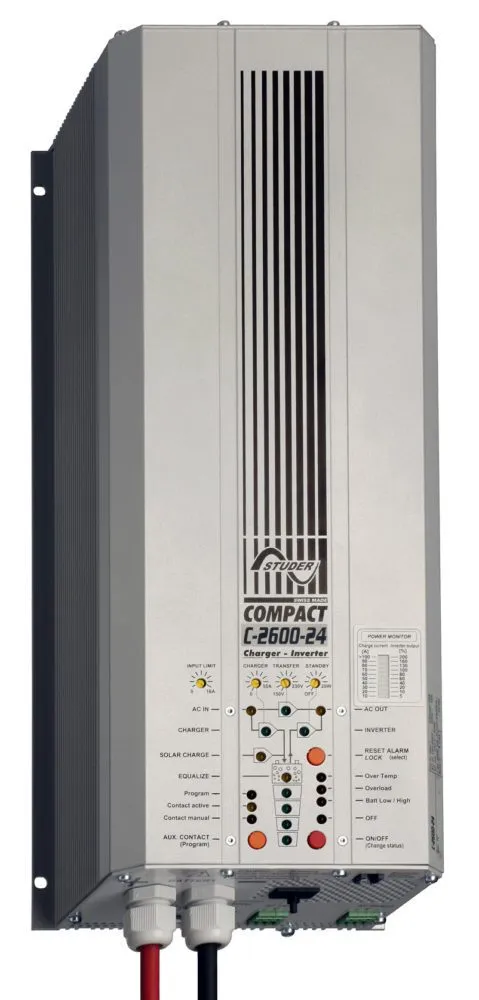

The XPC 1400-12, XPC 2200-24, C 1600-12 and C 2600-24 are certified in accordance with the ECE-R 10 standard. This certification is mandatory in the European Union for all electrical equipment on board transport vehicles.
User Manual compact1600,2400,4800
Data Sheet xpc-complet-2018-en-1
