Description

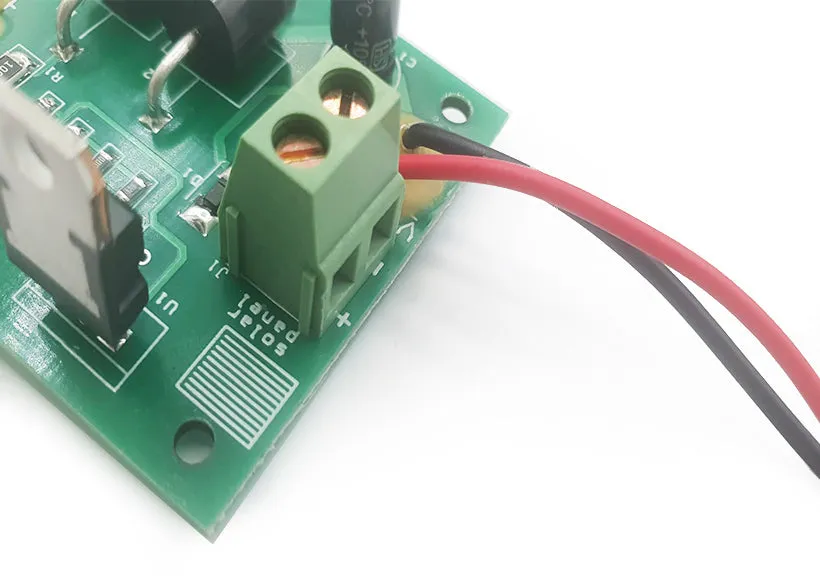

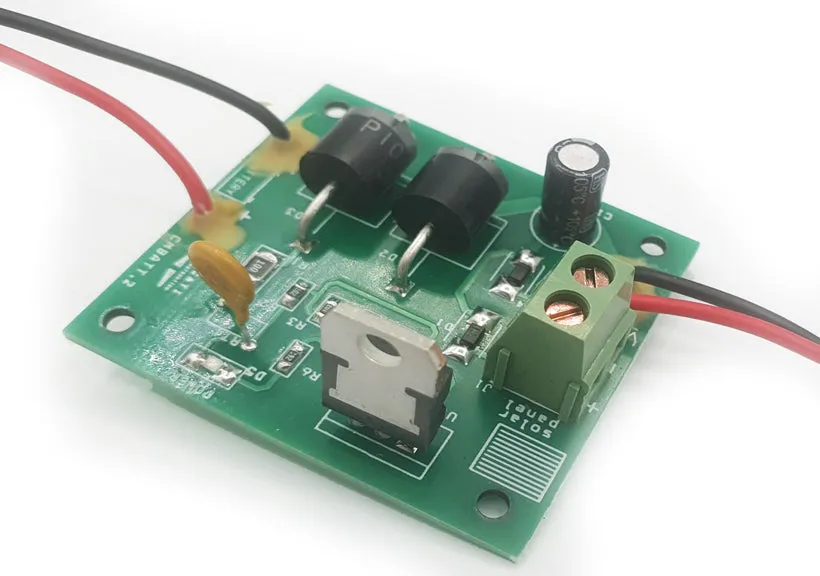

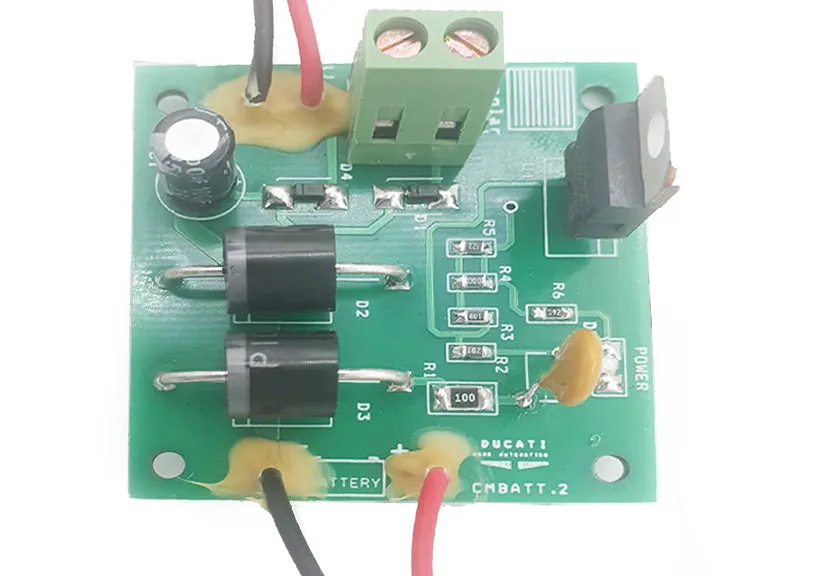

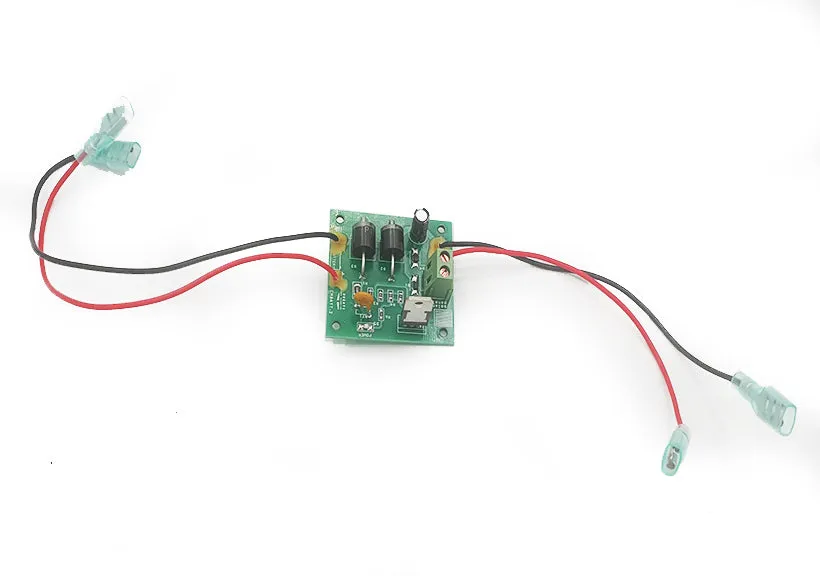

Battery charger module New Version (December 2022) with Upgraded charge controller to be also used to manage the recharge of the battery by a solar panel.

compatible with  electronic board model CTH42, CTH41,  ( swing gate opener) & CTH43 ( sliding gate opener) to add an emergency 12V lion acid back-up battery and power those boards by 12V solar panel.

Description

Battery charger module New Version (December 2022) with Upgraded charge controller to be also used to manage the recharge of the battery by a solar panel.

Compatible with electronic board model CTH42 (swing gate opener) & CTH43 ( sliding gate opener) to add an emergency 12V lion acid backup battery to the opener powered by AC power supply ( by toroidal transformer). The Ac power supply will automatically recharge the backup battery by the CMBAT 2.0 module

This module can be also used to set the power supply by a solar panel on electronic boards CTH41, CTH42 (swing gate opener) & CTH43 ( sliding gate opener). It requires a 12Vmin 7A lion acid backup battery and a solar panel 12V max 20W to power the main board of your opener. The Solar panel power supply will automatically recharge the backup battery by the CMBAT 2.0 module

Manual

Download Manual
