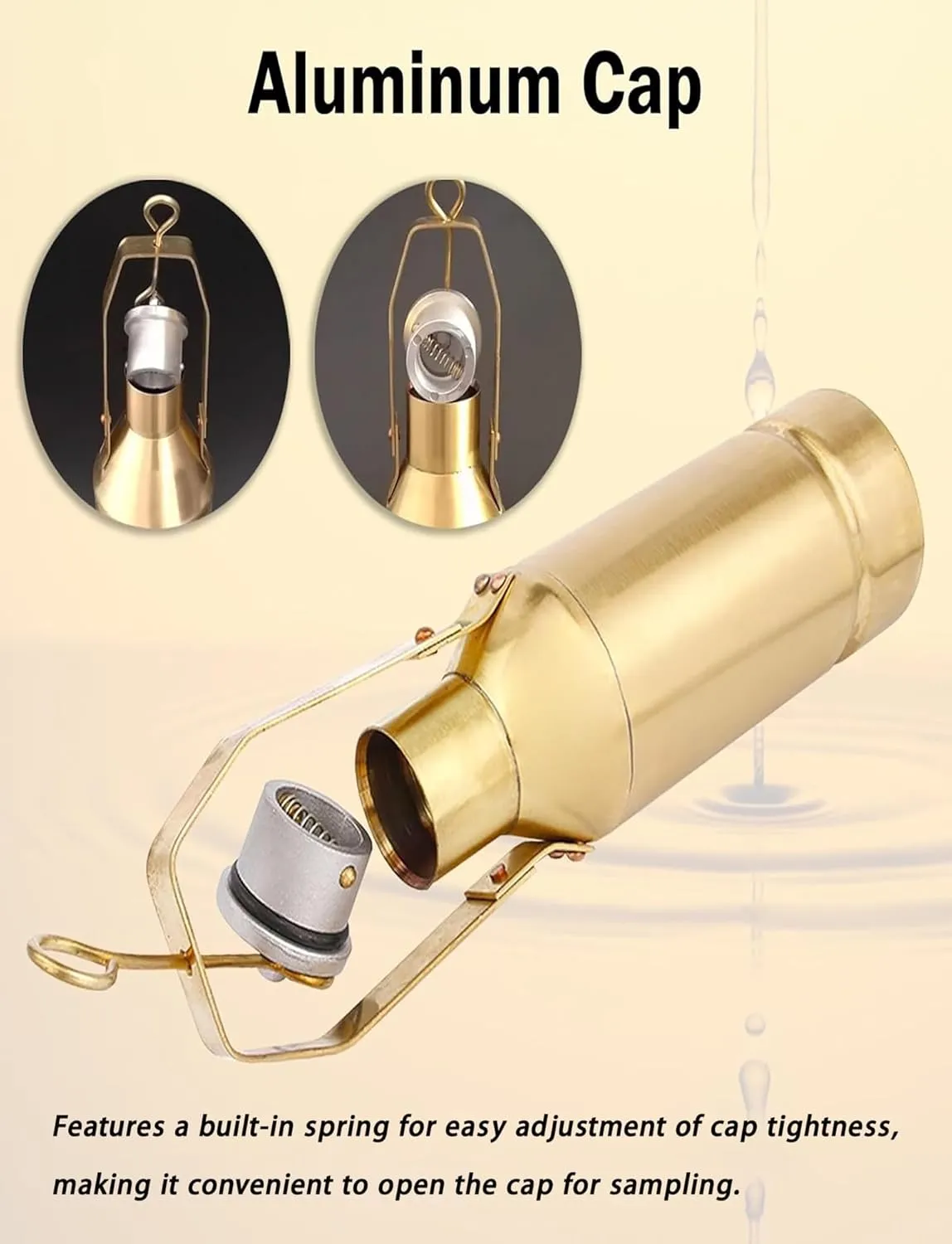

- Adjustable: The explosion-proof aluminum cover has a built-in adjustable spring, which can be adjusted as needed

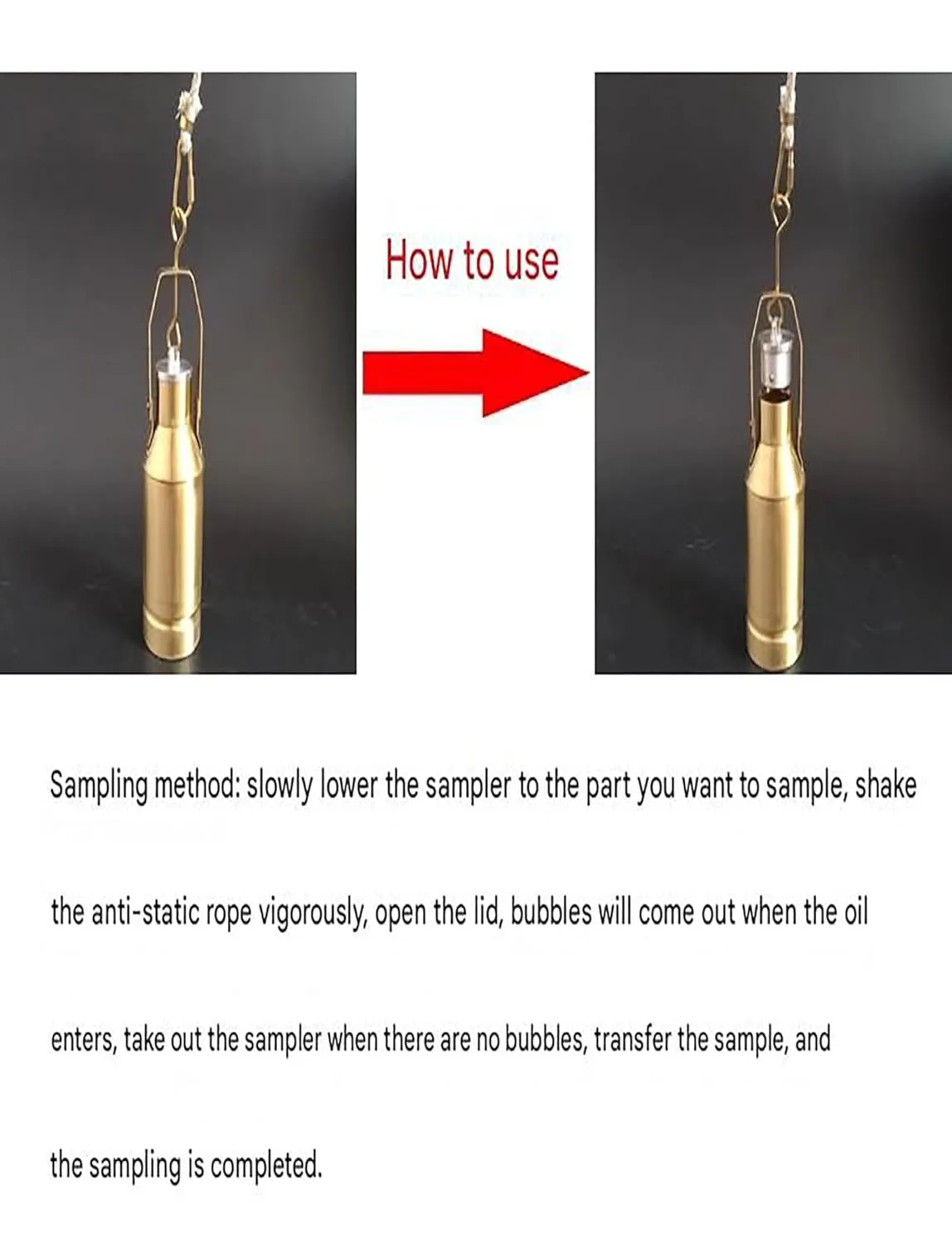

- Efficient sampling method: Just put it slowly into the sampling point and shake it to automatically open the cover to allow liquid oil to enter and produce bubbles. After the bubbles stop, take out the sampler to complete the sampling
- Small and portable: This oil sampler is small in size and easy to store and carry. It can be easily put into your tool box or vehicle, making it convenient for you to conduct on-site sampling anywhere
- Professionals: This sampler is easy to use and clean, and is a must-have tool for industry and laboratory professionals
- Leak-proof design: The unique leak-proof design ensures that the oil sample is not contaminated during the collection process and no leakage occurs, thereby maintaining stable operation and ensuring a safe and reliable sampling process
Brass Stainless Steel Heavy Oil Sampler Liquid Petroleum Bitumen Sampler Sampling Bucket Asphalt Sample Bottle
Product Description

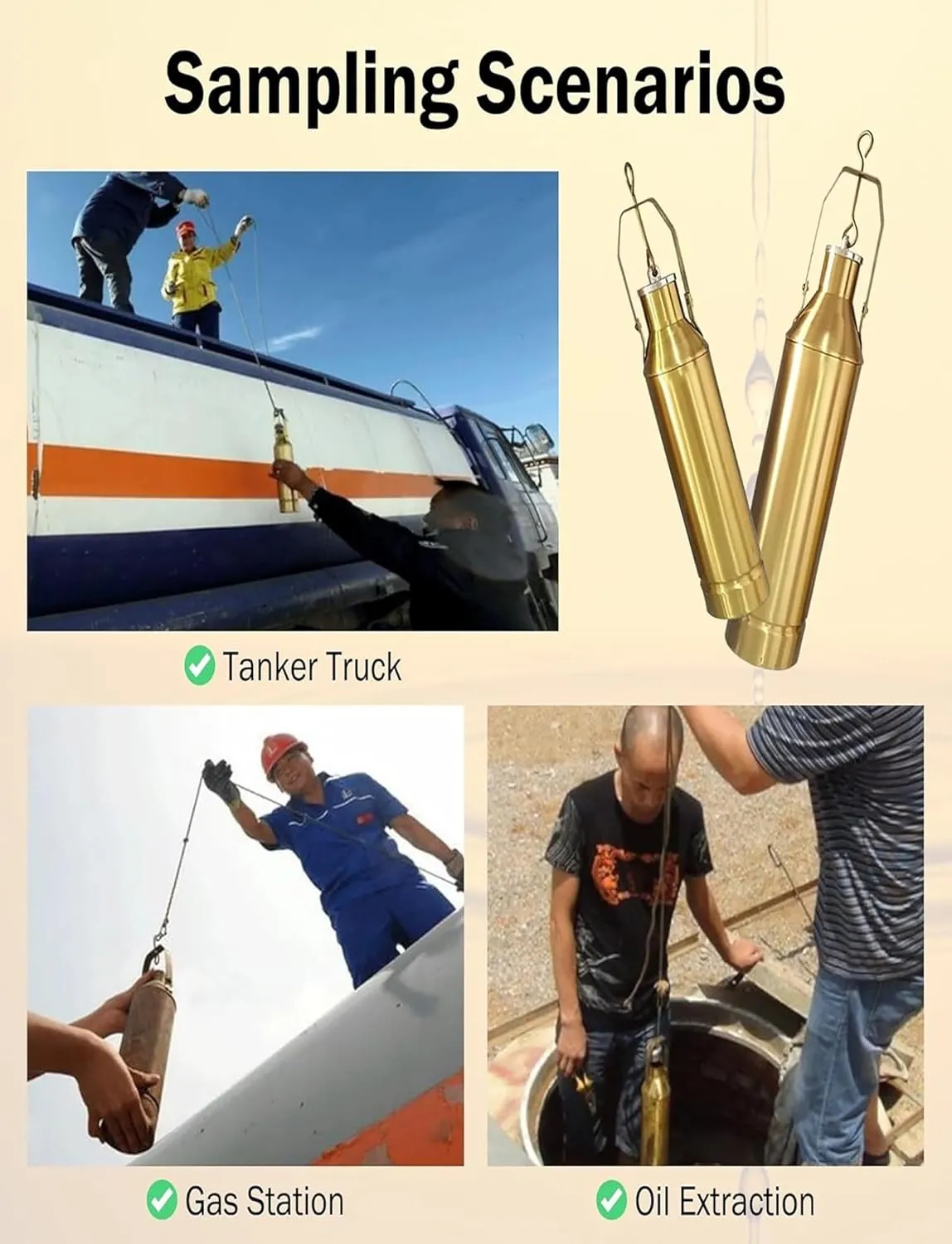

Made with a special process, the oil inlet is a closed structure, suitable for sampling liquid petroleum products on the inner surface and medium depth of containers such as storage tanks, containers, tank trucks, tankers, pipelines, etc. under normal pressure and normal temperature (oil safety temperature).
Material: Copper/Stainless Steel
Capacity: 500 ml/1000 ml
Applicable to: power plants, industry, food industry, manufacturing, petroleum, chemical industry
Working principle:
Used for sampling in the middle and upper part of the oil tank. Using the static rope,
the sampler spring cap can be lifted at the required liquid level height, and the medium can enter the sampler.
Precautions:

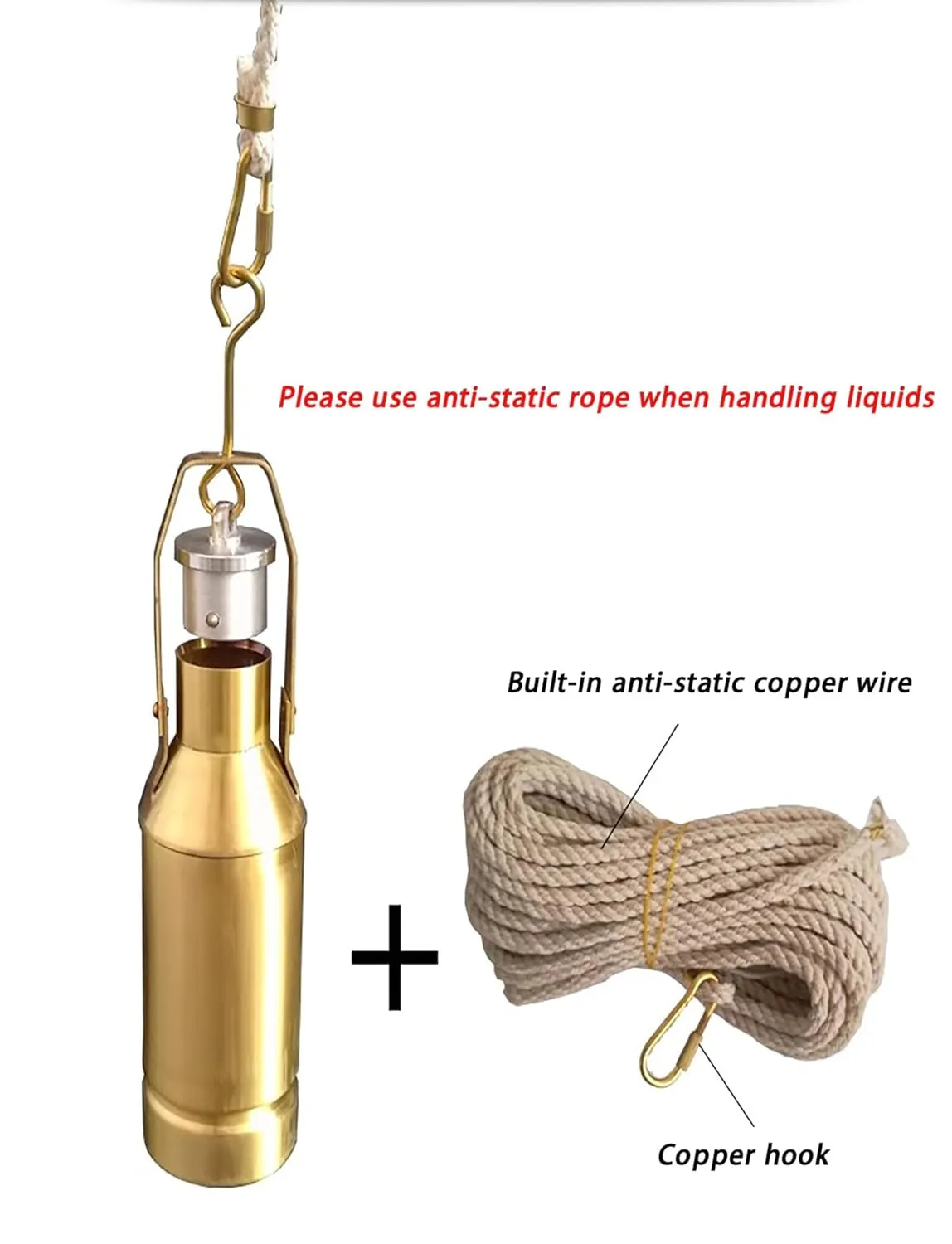

When sampling flammable and explosive liquids, please use anti-static cotton rope.
How to use:
1. One end of the anti-static sampling rope should be firmly grounded, and the other end should be firmly connected to the controllable sampler;
2. Touch the storage tank with your hand before sampling to eliminate static electricity;
3. Drop the sampler to the sampling position at a uniform speed (no more than 1 m/s).
When the liquid level of the sample to be taken is reached, try to find the electrostatic sampling rope and control the opening of the sampler bottle mouth.
When there are no bubbles, push out the controllable sampler and transfer the sample to complete the sample collection.
After the sampling is completed, the sample will be dried and stored;
When taking out the sampler, try not to touch the metal can to avoid static discharge;
During the entire sampling process, the sampler, anti-static sampling rope and grounding point
must be firmly connected to facilitate smooth conduction and elimination of static electricity.
Packing lis
- Package Dimensions : 1.18 x 0.79 x 0.39 inches; 4.41 Pounds
- Department : unisex-adult
- Date First Available : April 17, 2025
- Manufacturer : Generic
- Country of Origin : China
