Intelligent DC-DC chargers

BMPRO’s ProBoost25 is a DC-DC battery charger that allows you to charge a secondary battery using solar panels and/or a towing vehicle’s 12V electrical system.

The ProBoost25 utilises solar and auxiliary inputs to produce a maximum of 40A which ensures there is a consistent charge to your battery.

Compatible with both lead-acid and lithium LiFePO4 batteries, the high power density design of the ProBoost25 provides efficiency of up to 93%.

The ProBoost25 has an ultra-thin design, making it suitable for installation in small spaces, and is resilient to shaking, as well as wet, dusty or muddy environments.

A range of protective features built into the ProBoost25, such as overtemperature, overvoltage and undervoltage protection, will guard your charging capacity.

Features

• Dual input MPPT solar/aux (alternator)
• Multi-battery chemistry selector
• IP56 rating – resistant to dust, water & shock damage
• Maintains a 100% state of charge of auxiliary batteries

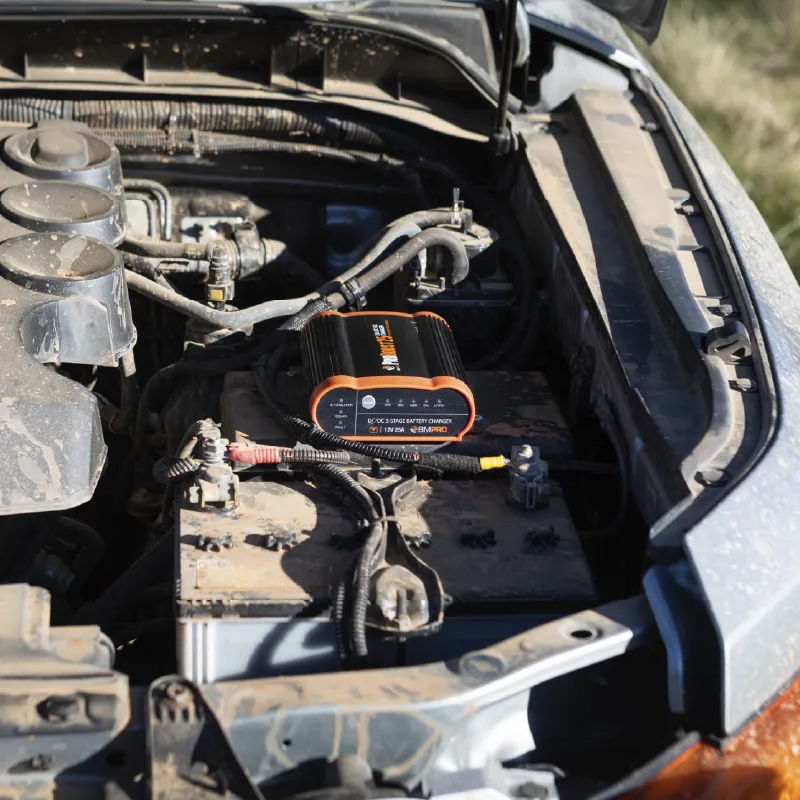

• Suitable for under-bonnet installation

*The ProBoost DC-DC Charger is designed to work as a standalone product.

To use this with a BMPRO Power Management System, such as the BatteryPlus35-II or the J35, you will need to connect it through a BC300 External Shunt.

Specifications

• Input Voltage: 9 - 18V

• Solar Input Voltage: 10 - 25V

• Maximum Input Current: 27A

• Input Fuse Rating: 40A

• Solar Input Watts: 500W

• Maximum Output Current: 25A

• Output Fuse Rating: 40A

• Minimum Start Voltage (Lead-Acid): 4V

• Minimum Start Voltage (LiFePO4): 0V

• Standby Current: <10mA

• Battery Type: STD, Gel, AGM, Calcium, LiFePO4

• Operating Temperature: -20°C to 80°C

• IP Rating: IP56

• Dimensions: 145mm x 130mm x 43mm

• Charge Type: 3-Stage

• Maximum Voltage (STD): 14.4V

• Maximum Voltage (Gel): 14.1V

• Maximum Voltage (AGM): 14.7V

• Maximum Voltage (Calcium): 15.3V
• Maximum Voltage (LiFePO4): 14.5V
• Float Voltage (STD): 13.4V

• Float Voltage (Gel): 13.5V

• Float Voltage (AGM): 13.4V

• Float Voltage (Calcium): 13.6V

• Float Voltage (LiFePO4): 13.6V

• Turn On Input (Standard Alternator): >13.1V

• Turn On Input (Smart Alternator): >12.0V

• Turn Off Input (Standard Alternator): <12.8V

• Turn Off Input (Smart Alternator): <11.8V
