IN-VEHICLE 12V DC-DC CHARGER FOR YOUR RV
BMPRO’s Miniboost DC-DC charger is a critical component of complete BMPRO Power Management solutions and is capable of charging Lithium batteries in conjunction with a BP35HA, J35 or ASPERO with integrated solar capability.

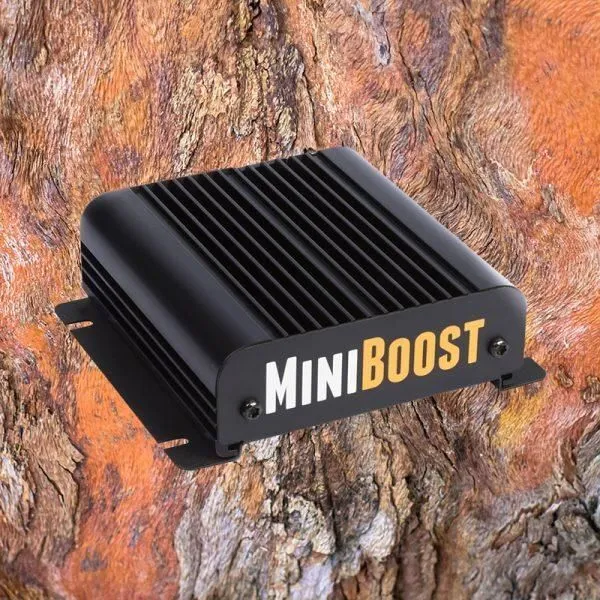

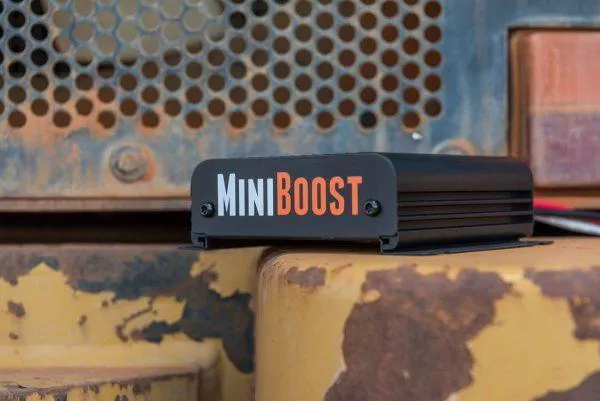

MiniBoost is a compact DC-DC charger /booster for RVs. It is specially designed to work with BMPRO’s BatteryPlus35, J35 & ASPERO systems. Charge your caravan or camper trailer’s house battery from the towing vehicle’s electrical system, even if the voltage delivered from the tow vehicle is lower than required for a recharge.
Need more power for charging whilst driving? Refer to the MiniBoostPRO 30Amp DC-DC charger. Compatible with all battery chemistries and includes the power of solar.
The MiniBoost is not a power supply and must be connected to a battery.
To get more out of your solar panels while driving, or to use the DC-DC charger with a lithium battery, refer to 30A DC-DC charger MiniBoostPRO.
Features:
- 20A multi-stage DC-DC charger
- Charges 12V RV battery while driving
- Suitable for AUX/secondary battery setup
- Multi-chemistry charging profiles
- Simple to install
- Voltage or smart alternator
Designed for installation with BP35, J35 & ASPERO
LiFePO4 (lithium) compatible when installed with a BP35-II-HA and solar
SPECIFICATIONS:
- Input Voltage Range: 10V - 15V
- Output Current: Boost Mode – 20A, Bypass Mode – 30A
- Output Voltage: Boost Mode – 14.4V, Bypass Mode – <1V less than input voltage
- Output Ripple Voltage: <150mV
- Output Current Protection: Boost Mode – 21A (electronic), Bypass Mode – 31A (fuse)
- Start Voltage: 12.2V - 12.9V
- Disconnect Voltage: 9.1V - 10.5V
- Battery Drain: <20mA
- Efficiency: >80%
- Battery Chemistry: AGM, Gel, Calcium, Wet and Lithium LiFePO4*
- Ambient Temperature: 0°C - 50°C
- Standards: RCM Approval, EMC CISPR 11, CFR 47 FCC Part 15
- Weight: 0.8kg
