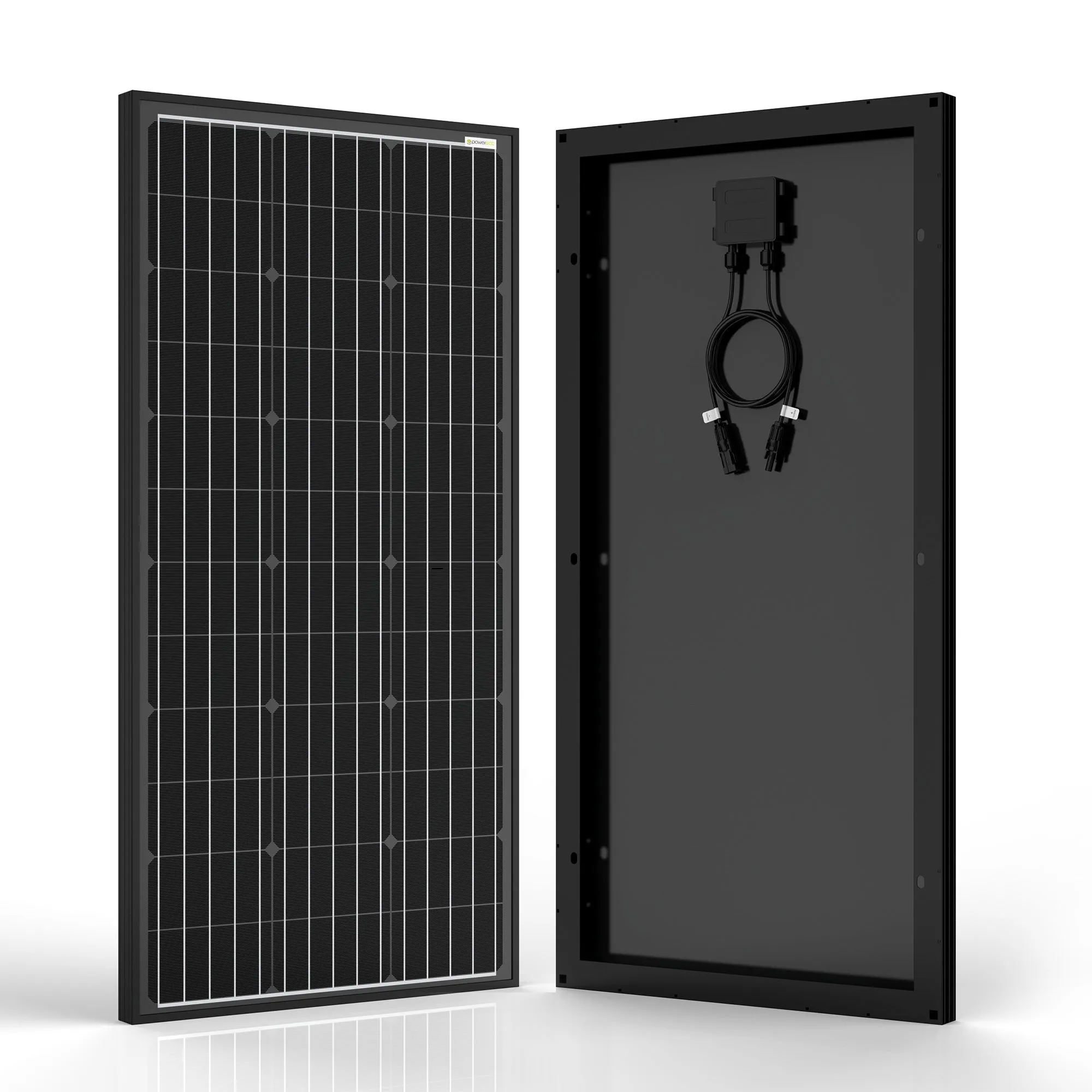

ACOPower's 200W 12V Monocrystalline solar panel is ideal for water pumps and residential power supplies. Its corrosion-resistant aluminum frame allows outdoor use and its anti-reflective tempered glass ensures no hot-spot heating. High module conversion efficiency cells provide the highest efficiency rates and easy installation is supported by its 35-inch PV male/female quick connectors.

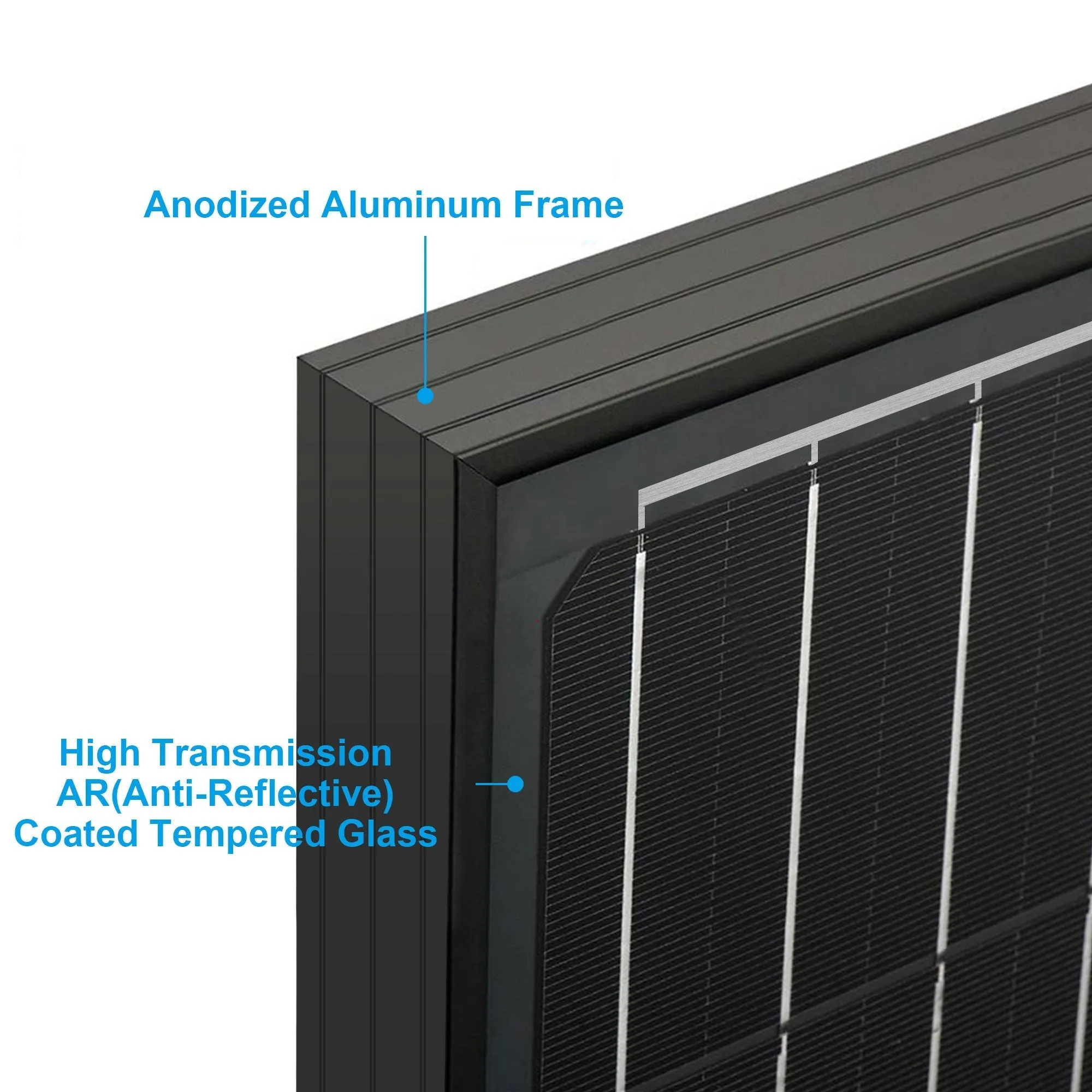

A durable anodized aluminum frame and reinforced safety glass ensure long service life. This panel is easy to maintain and provides consistent power in all light levels, offering high-quality, reliable, and environmentally friendly energy. It's also designed to withstand snow, outdoor elements, and high winds up to 2400Pa.
ACOPOWER 200W 12V Monocrystalline for Water Pumps, Residential Features:
- Application: Mainly used for home roof-top, outdoor water pumps, solar plants

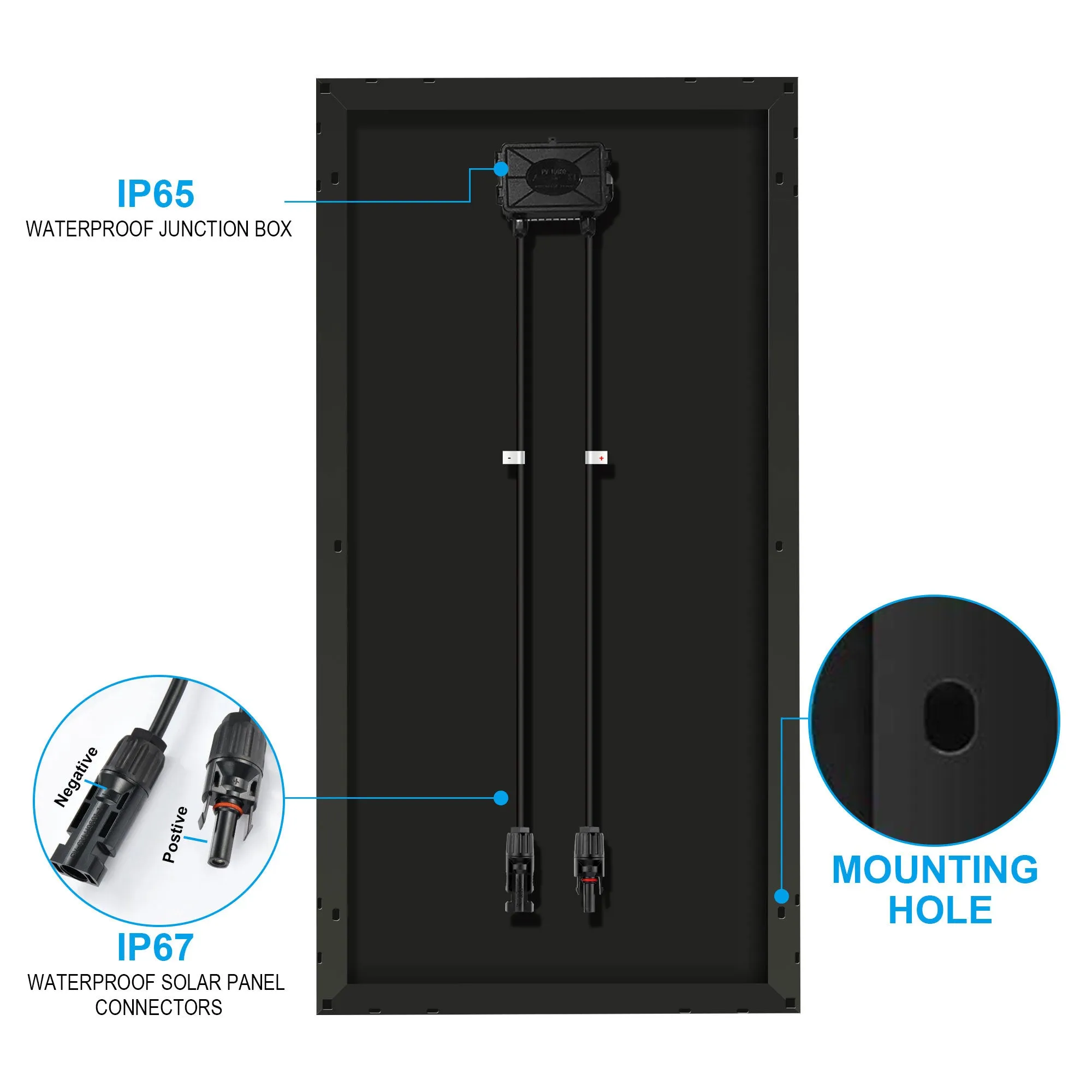

- Easy Installation: Pre-drilled holes and installation ready; IP65 rated junction box with diodes and 30 inches cable with MC4 connectors pre-installed
- High-Quality Mechanical Properties: Guaranteed positive output tolerance (0-3%); withstand high wind-pressure snow load and extreme temperature
- Warranty: 25 years of output warranty and 5 years of workmanship warranty
ACOPOWER 200W 12V Monocrystalline for Water Pumps, Residential Specifications:
- Peak Power Watts-PMAX (Wp): 200W Power
- Output Tolerance-PMAX (W): 0~ 5 W
- Maximum Power Voltage-VMPP (V): 20.4 V
- Maximum Power Current-IMPP (A): 9.80 A
- Open Circuit Voltage-VOC (V): 24.3 V
- Short Circuit Current-ISC (A): 10.2 A
- STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5
- NOCT (Nominal Operating Cell Temperature): 45°C (±2°C)
- Maximum System Voltage: 1000VDC Module

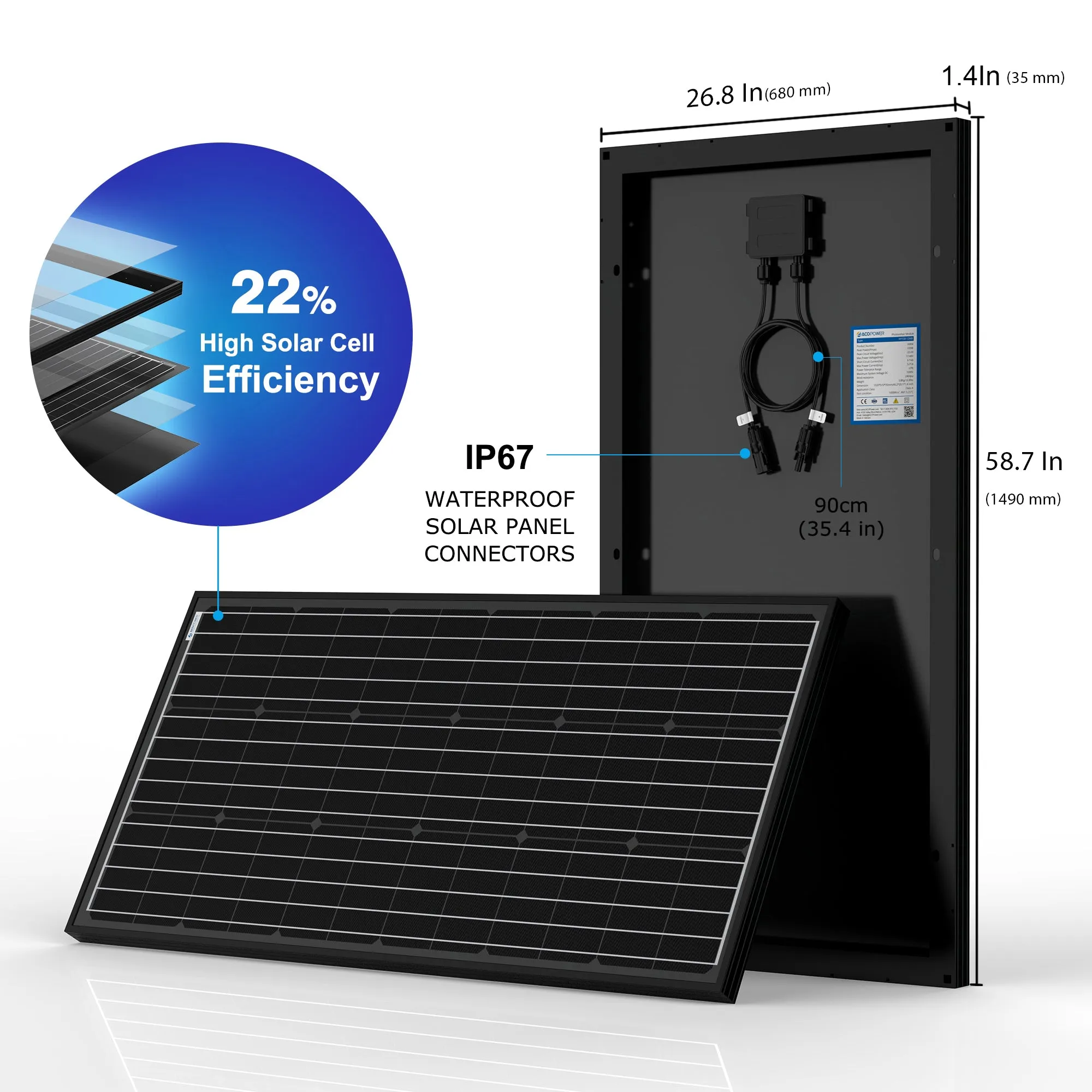

- Dimensions: 58.7 × 26.8 × 1.4 inches (1490 × 680 × 35 mm)
- Weight: 26.5 lb (12 kg)
