- SC embedded fiber optic quick connector , using tricyclic class A ferrule insertion loss.
- operability / reuse / stable performance/fast installation.
- Metal V-shape cavity work well in high and low temperature
- FTTH project usable，field fast installable
- 5 Pcs/bag, equipped with dust-free paper, each connector has its own small package, easy to carry.
Parameter:

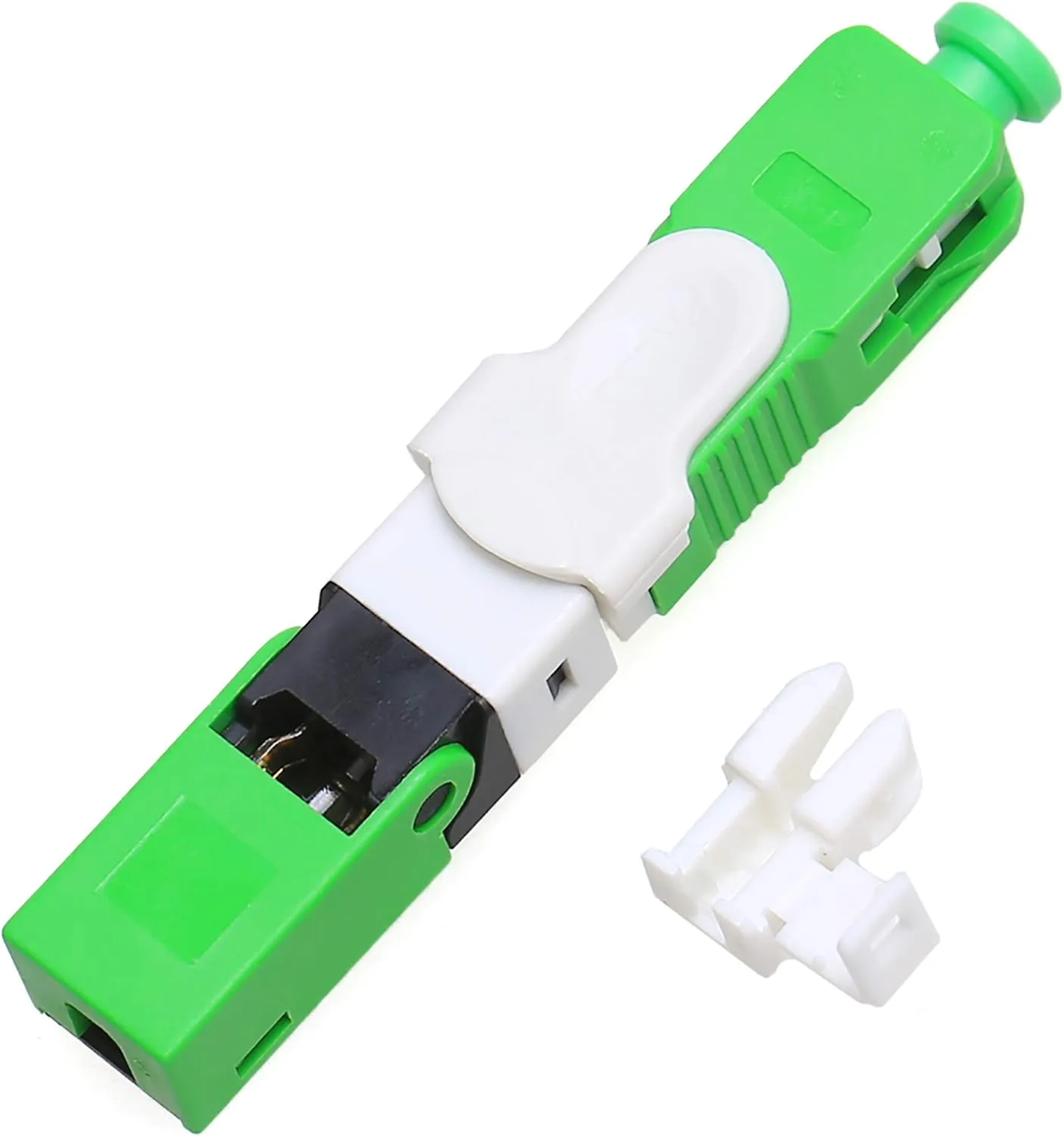

Product Name: Embedded fiber optic quick cold connector
Model: ESC250D SC-UPC/SC-APC
Number of fixed slots: Double solid line slot
Tight buffer diameter:250μm
Applicable for: 2.0*3.0mm/ 2.0*1.6mm Drop Cable
The average insertion loss: ≤0.3db
Return loss: ≥50db
Temperature cycle: -40 ~ 85 / 168h
Variation: ≤0.2db
Rally: ≥50N
Torque: ≥35N
Repeat assembly: ≥25 times
Variation: ≤0.2db
SIze:52*6mm
Packing: 5Pcs/bag（Each has its own packaging)
Application:
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH Outlets
5. Field word
